Key features
- Integrated NTP/SNTP server output on RJ45
- Compliance: RFC 5905 (NTPv4) / RFC 4330 (SNTPv4)
- Quick and easy commissioning thanks to the user-friendly web interface
- Alarms via SNMP TRAP (v1, v2C and v3)
- Time base and algorithm guaranteeing output accuracy
- Status information via LEDs on the front panel
Security and network protocols
- Configuration parameters saved in flash memory
- Monitoring via SNMPv3 or GT SCADA or Syslog monitoring software
- Remote configuration via secure web page
- Command prompt for configuration via SSHv2
- Firmware update via SCP or FTPS
- IPv4/IPv6 addresses (DHCP compatible)
- Connections to the web configuration interface via HTTP and HTTPS
- Secure access to web interface via username and password
- HTTP digest authentication with SHA-256 print
Configuration
- Remote configuration and time setting via a secure embedded web interface
- Configuration file, retrievable via secure web page
- Activation and deactivation of configuration interfaces
- Auto-IPv4
1 synchronisation input among:
- GPS
- NTPv4: Ethernet RJ45 10/100BASE-T (5 configurable servers)
- ALS
Synchronisation outputs
- NTPv4 / SNTPv4 Ethernet RJ45 10/100BASE-T: unicast, multicast, broadcast
- Maximum number of responses per second: 5,600
- Maximum number of clients (64-second period, burst mode inactive): 358,

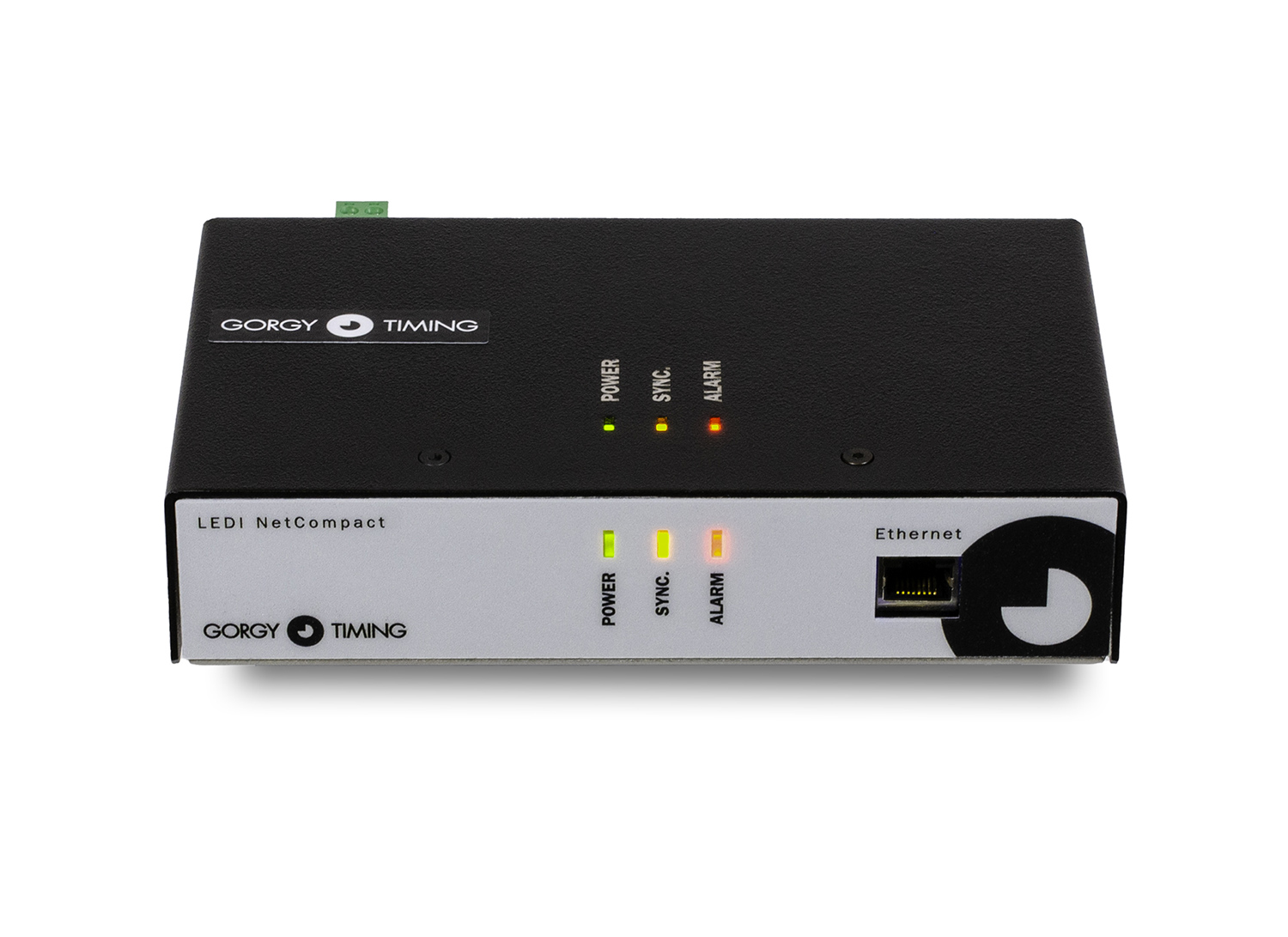

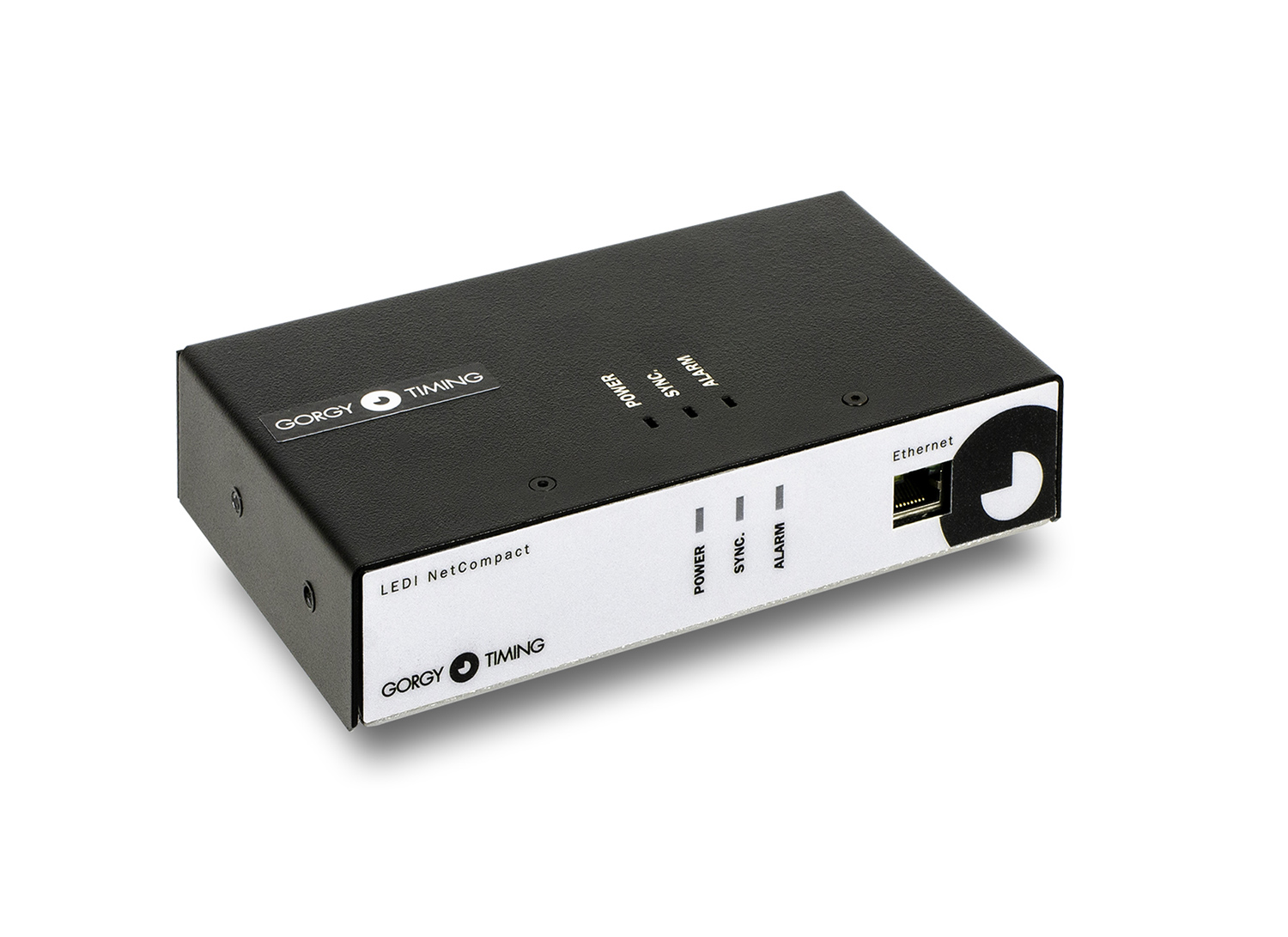

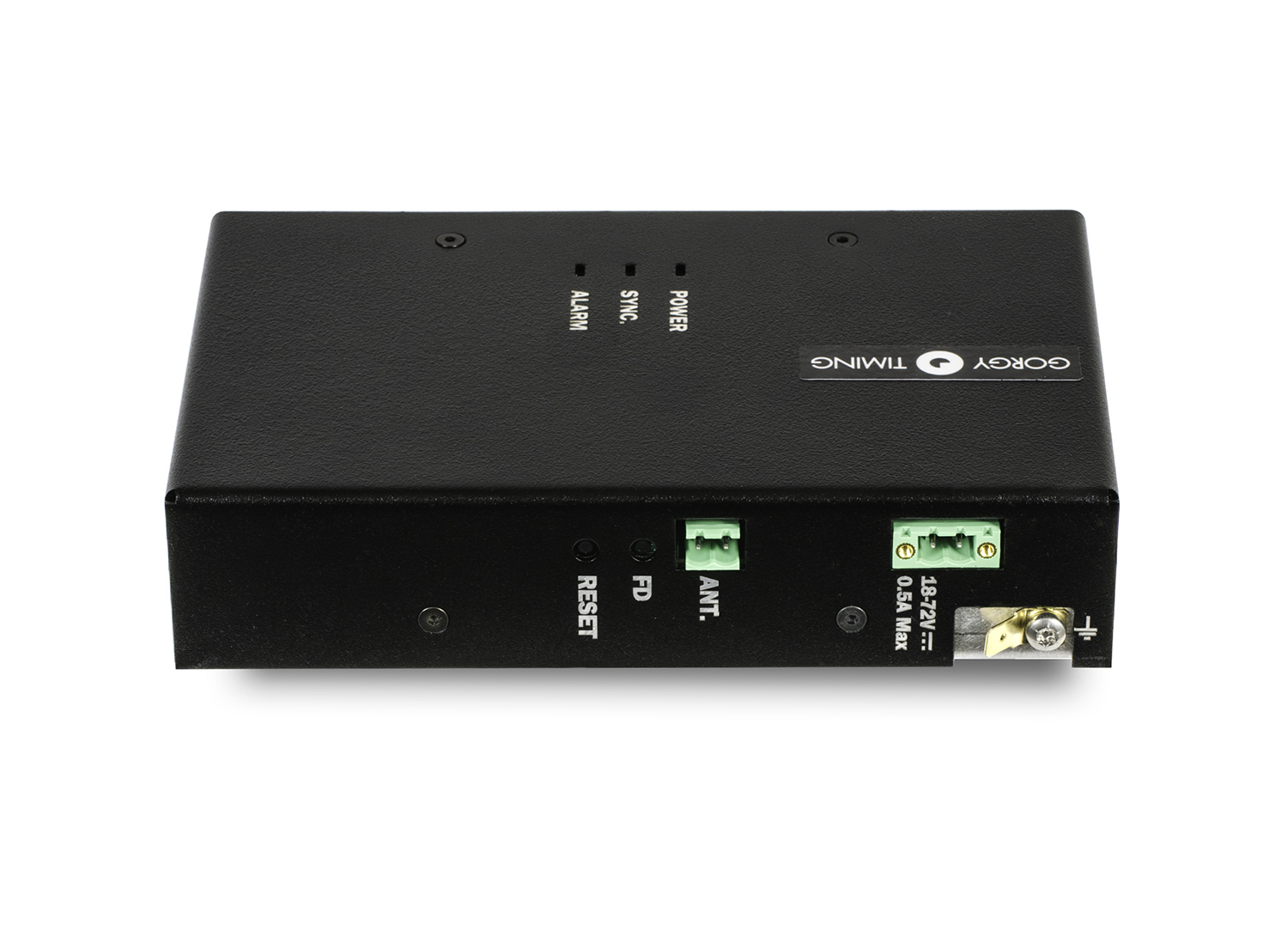

LEDI® NETCOMPACT
Secure and accurate synchronisation of your equipment
Ultra-compact DIN rail time server
Discover our LEDI NETCOMPACT time server, a reliable and ultra-compact solution for synchronising your equipment. It is perfectly suited to installations with limited space.
This time server provides SNMP-monitored NTP, ensuring effective monitoring and management. Equipped with visible alarms via LEDs on the front panel and an integrated web interface, it offers convenient, simple and intuitive configuration and use.
Thanks to its internal time base, the LEDI® NETCOMPACT maintains good accuracy even in the event of external synchronisation loss. It is capable of handling a very large number of NTP requests per second.

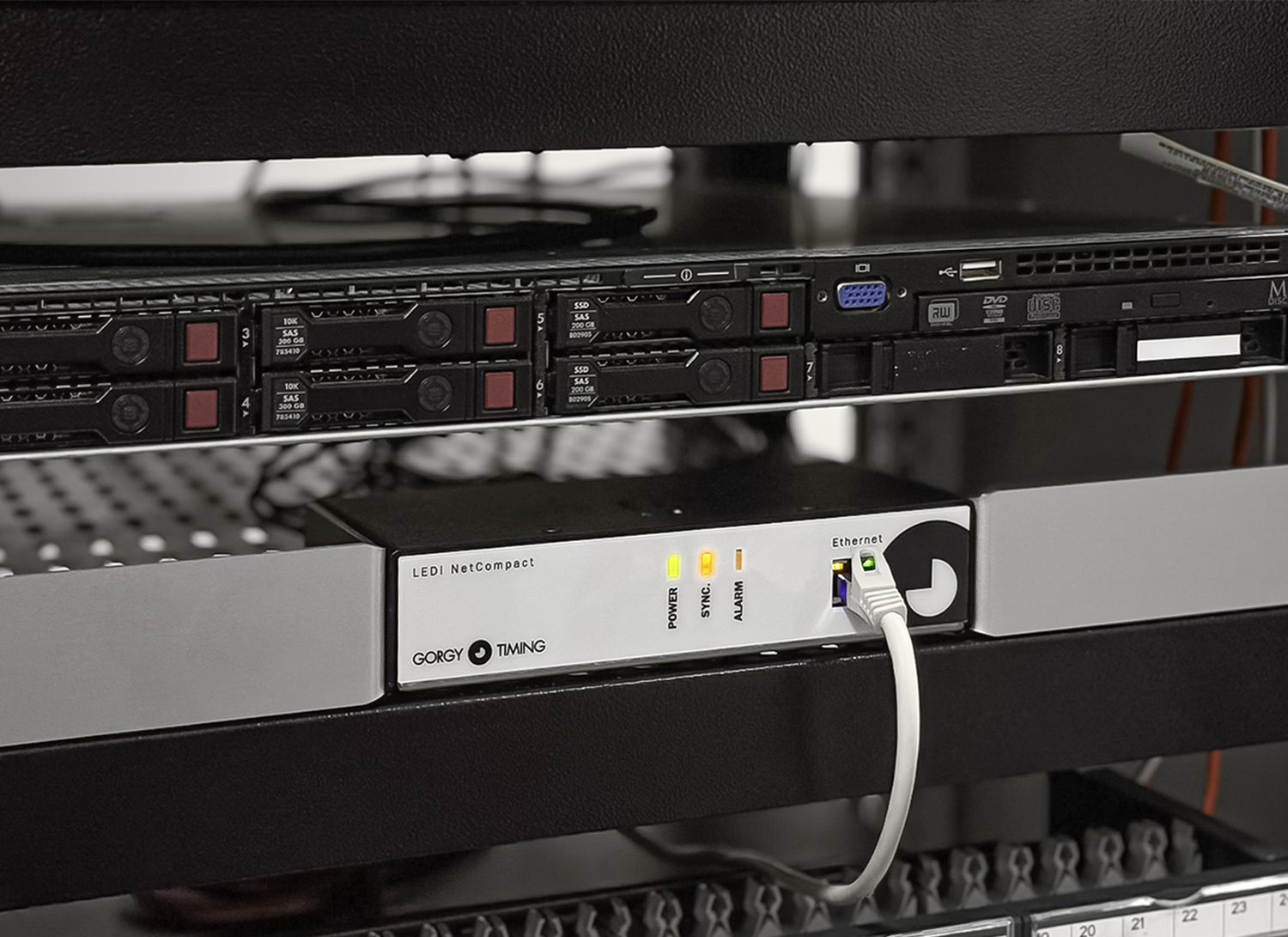

Compatible with DIN rail or 1U rack mounting, and equipped with power options suitable for different chassis and racks, it offers flexible integration into a variety of infrastructure architectures.
Explore our technical data sheet to discover how our solution can meet your synchronisation needs.
- AccuracyImage
Most of Internet-based time servers have not the level of accuracy required to be used for synchronisation: our systems feature an accuracy from a hundred of milliseconds down to tens of nanoseconds.
- SecurityImage
Our products use fine corrections in order not to trigger security alerts in the case of loss of reference of the time information. The administrator is notified if a significant offset is detected.
- Continuity of serviceImage
Our time centres and time servers operate redundantly, 24h a day with the hot plug principle. The different racks can be changed while operating without requiring the whole installation to stop.
